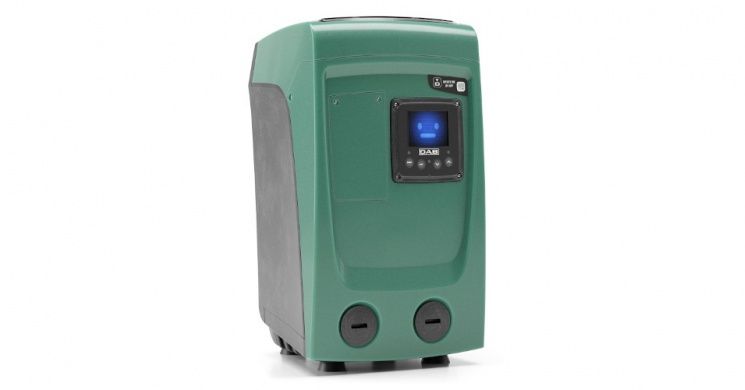

DAB E.SYBOX Mini Electronic Water Pressure System

Esybox Mini 3 has a different appearance than any other booster set and is small and completely integrated. Once you install and use it, you realize that the real difference is in the comfort and performance.

Esybox Mini 3 uses the most advanced DAB technologies to create constant pressure according to the system demands and thus an optimization of energy consumption.

Suitable for use with potable water, in domestic systems and gardening applications.
The new 3-rotor model ensures further noise reduction and energy consumption.
Managing the water pressure in your home has never been so simple and quiet.

It is possible to create groups of maximum two pumps. It supports the remote control function thanks to the DConnect service integrated directly into the system.

EsyBox Mini 3 is ACS certified.

OPERATING RANGE: flow rate up to 80l/min; head up to 55m

PUMPED LIQUID: clean, free from solids or abrasive substances, non viscous, non aggressive, non crystallized and not chemically neutral

LIQUID TEMPERATURE RANGE: from 0°C to + 35°C for domestic use and from 0°C + 40°C for other use

MAXIMUM SUCTION DEPTH: 8 meters
